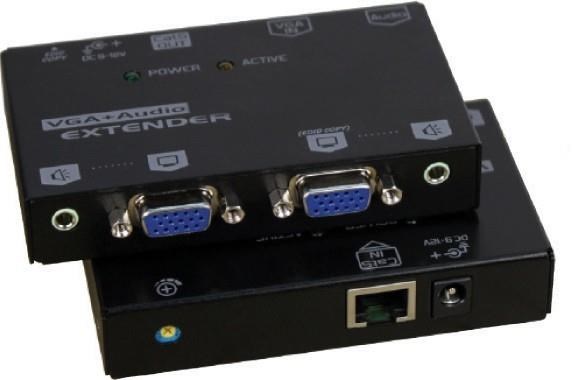

Serveredge VGA+Audio Video Extender Over Cat5 Up To 165 Meters - With Edid Copy & RGB Skew

  • Part: 1195751
  • Model: HD15AEXCAT-300
$488.45

Availability

In Stock

The Serveredge VGA CAT5 Extender transmits VGA + Audio signals with resolution of upto Full HD 1 8 p (192 x 1 8 ) WUXGA (192 x 12 ) & 2 48 x 1152 featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables.To ensure video performance users can set up Gain (brightness) EQ (sharpness) and RGB skew via rotary switches on the side of unit. It offers a rather convenient way to adjust video quality.The Serveredge VGA CAT5 Extender is ideal for public broadcasting exhibits retail stores Courtrooms stock tickers bus stations and many more applications.

* Transmits VGA+Audio through Category 5/ 5e/ 6 UTP cable* Provides 2 output ports for local display* Supports VGA SVGA and Multisync monitors.* EDID Copy function makes the best resolution presenting for your application.* EQ (equalization) calibration switch designed for optimum signal clarity.* Using repeaters along your path to connect additional displays or using a receiver to connect directly to a remote display.* Features of models with RGB Skew function.* Supports the resolution of 192 x 12 with the high quality CAT5 cable.* Supports 2 M/3 M RGB Skew Correction.* Improve the skew of each color for the best image integrity.* Unique and excellent technique to adjust RGB colors by only 2 steps.Warranty :2 Years
