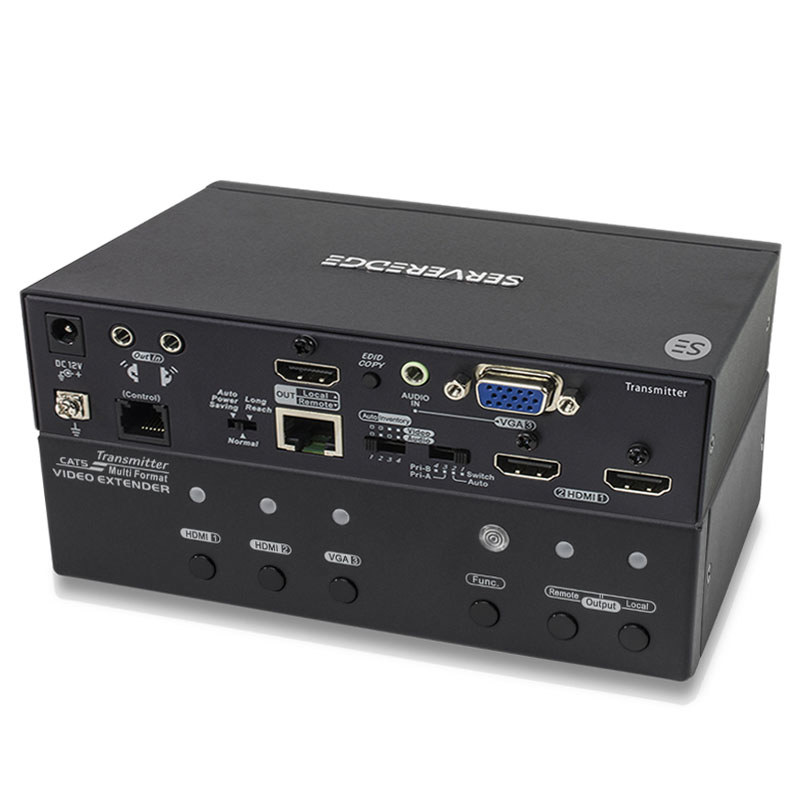

The Serveredge HD2V-EX-1 -HDBT is a Multi Input Switcher Transmitter (Tx) with (2) HDMI (1) VGA Audio IR Control Inputs with (1) HDBaseT Local HDMI Output and Audio Out. It features two HDMI inputs and a VGA input with 3.5mm audio connector. The unit combines the benefits of a switcher with built-in auto-switching and the advantages of extended-distance HDBaseT signal transmission over a single cable. The switcher enables automatic display on/off auto-switching third-party control plus other control features.The optional Graphical User Interface (GUI) function makes control easy and more effective. The well-designed GUI can free users from giving complex commands. It allows you to name and portray your source and display icons for a user-friendly operation.Multi-functions for EDID setting like EDID Copy and EDID Pre-setting ensuring accurate output display. Enable the unit to separately learn Audio and Video EDID for multimedia/ Home theatre system integration it can also read and store the EDID from the connecting display to the video extension.It supports resolutions up to UHD (384 x 216 )and Full HD (192 x 1 8 ) and is compatible with most of the popular screen resolution. This Serveredge HD2V-EX-1 -HDBT extender kit is HDCP compliant and only requires single power supply at either transmitter or receiver end. It features compact size for easy set up and install.
3 0æ1 HDBaseT_¢ switcherFeatures two HDMI inputs plus a VGA input with 3.5mm audio connector which allows advanced HDMI display devices to be used with legacy VGA sourcesTransmits HDMI signals up to 1 m @ 1 8 p and 7 m @ 4K/UHD using CAT6a/7 cable. Uses easy-to-integrate category cable for low-cost reliable system installationAuto-switchingSelects active input when sources are connected or if there is a change in source power status. Eliminates need for complex control system in small AV systemsFlexible control options for compatibility with 3rd-party control systems. RS-232 controlled from HDBaseT connection reduces integration time and costs. Front panel Input Select button and Remote for easy switching between sources. Input source sequence selectableGraphical User Interface (GUI)Allows you to name and portray your source and display icons for a user-friendly operation. Makes control easy and more effectiveWarranty: 2 Years
