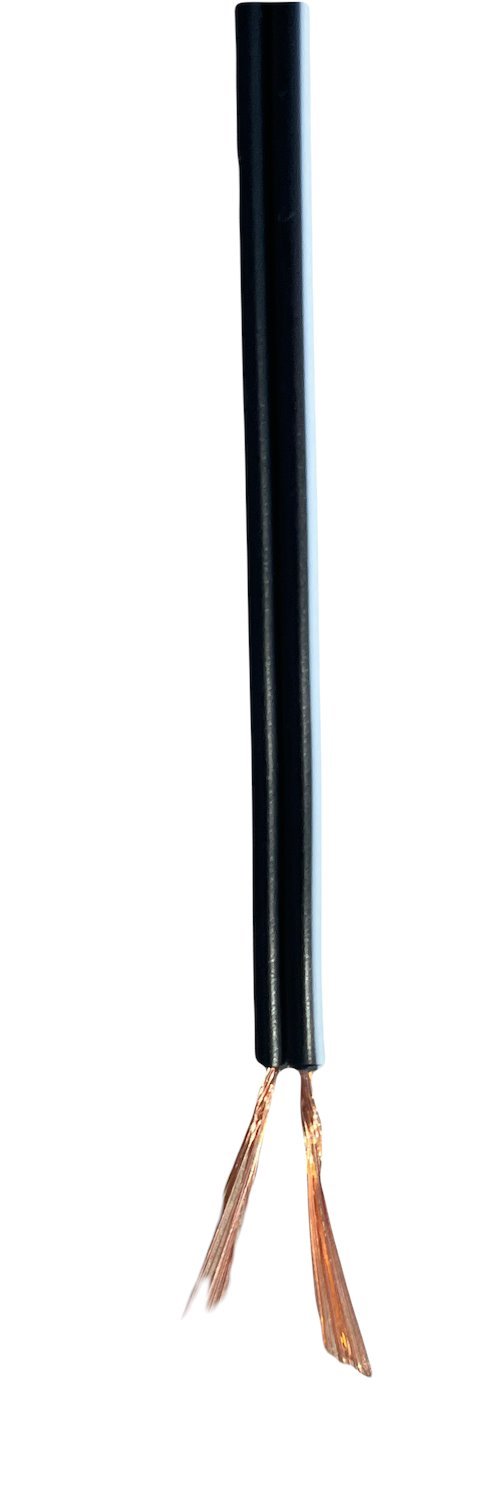

The FIG8 Cable BCF80440-250 is a 2-core, unscreened cable with a PVC sheath, supplied in a 250m length. It features 24 strands of 0.20mm conductors, resulting in a nominal area of 0.75mm² and an amp rating of 7.5Amps. The cable is designed with a parallel webbed construction and has a nominal outer diameter of 2.40 x 5.40mm. It is black with a white trace.

FEATURES

• 2 Cores
• 24/0.20mm construction
• PVC Sheath
• Parallel Webbed

SPECIFICATIONS

• Cable Type: FIG8 Cable
• Size: 24/0.20
• Cores/Pairs: 2 Core
• Screen Type: Unscreened
• Sheath: PVC Sheath
• Conductors: 24 strands of 0.20mm
• Nominal Area: 0.75mm²
• Amp Rating: 7.5Amps
• Insulation Thickness: 0.3mm
• Nominal O/D: 2.40 x 5.40mm
• Conductor Sheath: V75 PVC
• Length: 250m
• Colour: Black/White

WARRANTY

1-Year Limited Warranty
