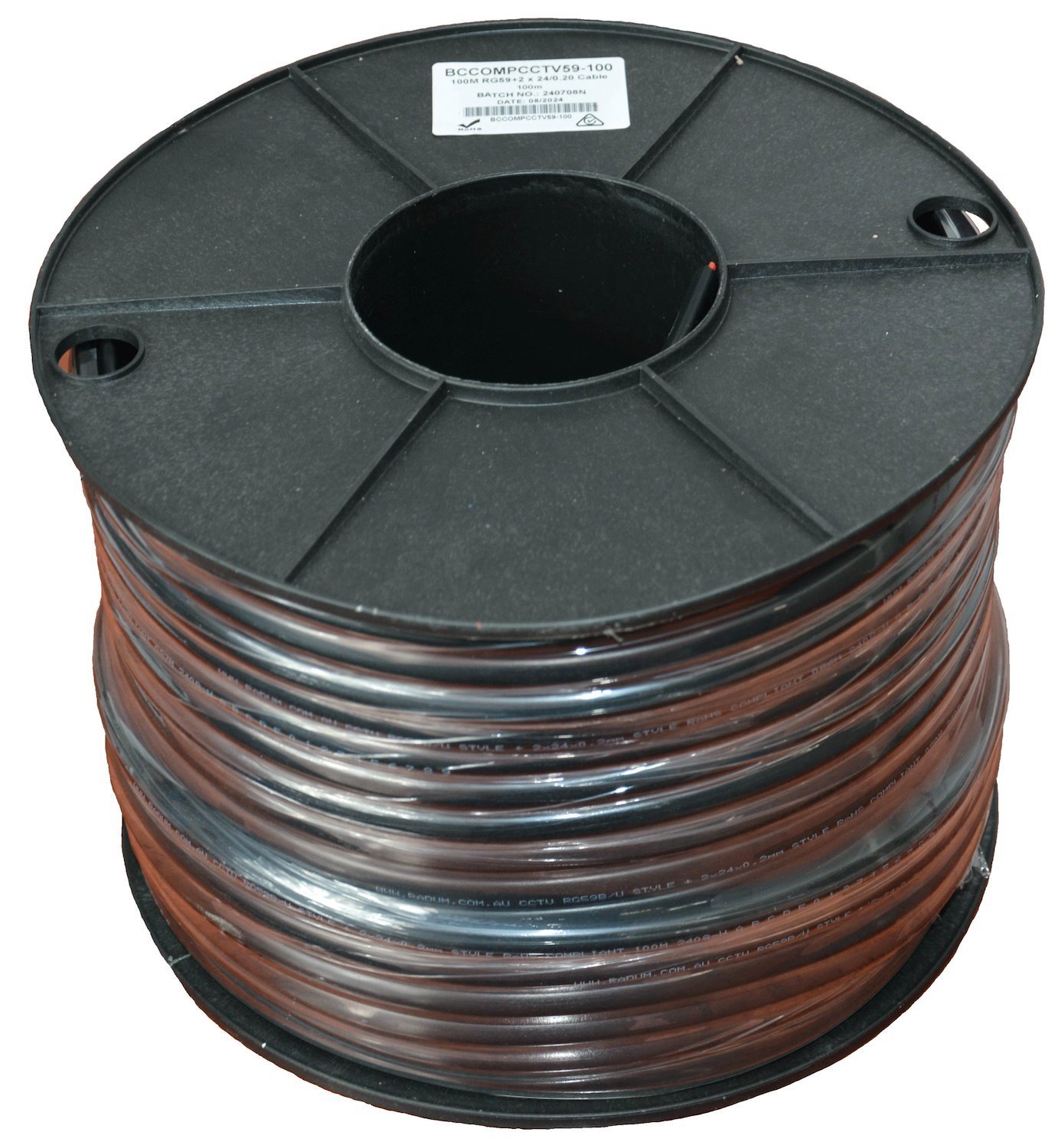

This 250m black composite cable offers a convenient solution for CCTV and security system installations. It combines a high-quality RG 59 B/U MIL-17-C coaxial cable for reliable video signal transmission with two separate 24/0.20mm power wires, all within a single PVC outer sheath. This design simplifies cabling, reducing installation time and clutter. Ideal for connecting security cameras and providing them with power in one run.
FEATURES
- Includes RG 59 B/U MIL-17-C coaxial cable
- Contains 2 x 24/0.20mm power wires (Red and Black PVC sheathed)
- Supplied in a 250m roll
- Black PVC overall sheath for durability
- Simplifies CCTV and security system wiring
SPECIFICATIONS
- Coaxial Cable Type: RG 59 B/U MIL-17-C
- Coax Conductor: 1 x 0.584mm Annealed Copper
- Coax Insulation: Solid Low Density Polyethylene (3.70mm O/D)
- Coax Shield: 95% Coverage 0.16mm / 16 x 7 BC
- Coax Jacket: V75 PVC Black (6.15mm O/D)
- Coax Impedance: 75 Ohm
- Power Wires: 2 x 24 strands / 0.20mm
- Power Wire Sheath: Flame Retardant V75 PVC (Red and Black)
- Overall Sheath: Flame Retardant V75 PVC Black
- Roll Length: 250m
WARRANTY
1-Year Limited Warranty
